Structural Rivets

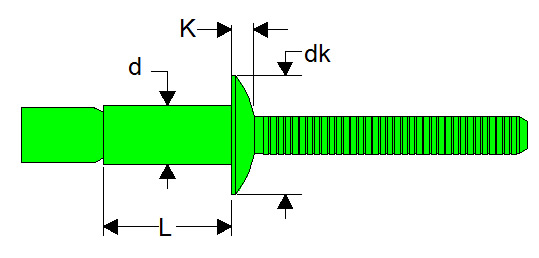

Body

ALUMINIUM
Mandrel
 Aluminium
Head
 Dome
structural rivets

On your mobile, drag the table below to the left and right to see the information.

Code

Diameter(d)
X
Length(L)

(mm)

Head
Diameter
(Ave)
(dk)

(mm)

Head
Thickness
(Max)
(K)

(mm)

Hole
Size


(mm)

Grip
Range


(mm)

Tensile
Strength


(N)

Shear
Strength


(N)
AA-C-LOCK 4.8 x 14 10.0 2.3 5 1.58 - 11.10 2002 2446
6.4 x 15 13.0 2.9 7 2.03 - 9.53 3692 5649
6.4 x 19 13.0 2.9 7 2.03 - 15.87 3692 5649

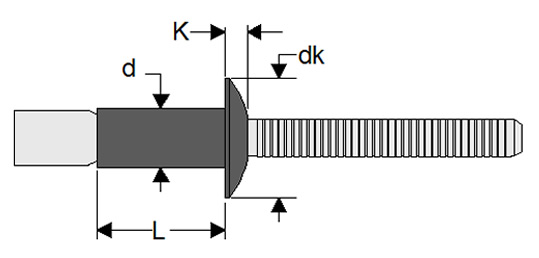

Body

STEEL
Mandrel
 Steel
Head
 Dome
structural rivets

On your mobile, drag the table below to the left and right to see the information.

Code

Diameter(d)
X
Length(L)

(mm)

Head
Diameter
(Ave)
(dk)

(mm)

Head
Thickness
(Max)
(K)

(mm)

Hole
Size


(mm)

Grip
Range


(mm)

Tensile
Strength


(N)

Shear
Strength


(N)
SS-C-FIX 4.8 x 14 10.0 2.3 5 1.63 - 11.10 4450 5785
6.4 x 15 13.0 2.9 7 2.03 - 9.53 8230 10675
6.4 x 19 13.0 2.9 7 2.03 - 15.87 8230 10675
SS-C-LOCK 9.8 x 20 19.0 4.6 10 3.05 - 15.88 16010 26240

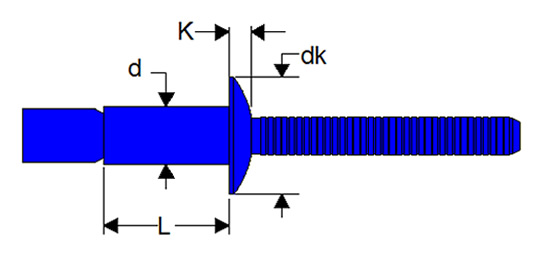

Body

STAINLESS STEEL
Mandrel
 Stainless Steel
Head
 Dome
structural rivets

On your mobile, drag the table below to the left and right to see the information.

Code

Diameter(d)
X
Length(L)

(mm)

Head
Diameter
(Ave)
(dk)

(mm)

Head
Thickness
(Max)
(K)

(mm)

Hole
Size


(mm)

Grip
Range


(mm)

Tensile
Strength


(N)

Shear
Strength


(N)
BB-C-FIX 6.4 x 14 13.0 2.9 7 2.03 - 9.53 8230 10675
6.4 x 19 13.0 2.9 7 2.03 - 15.87 8230 10675
