Blind Rivets / Peeled Rivets
Body
ALUMINIUM (5056)
Mandrel
Steel
Head
Dome

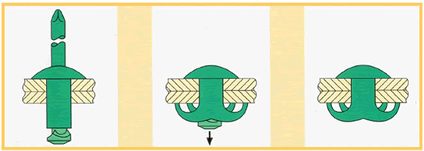

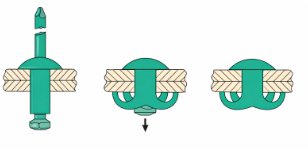

Suitable for joining plastics, rubber, wood and laminates.
Tolerant of oversized holes, the “peel” can draw together and clamp poorly aligned components.
On your mobile, drag the table below to the left and right to see the information.
Code
Diameter(d)
X
Length(L)
(mm)
Head
diameter
(Ave)
(dk)
(mm)
Head
thickness
(MAX)
(K)
(mm)
Hole
size
(mm)
Grip Range
(mm)
Tensile strength
(N)
Shear strength
(N)
PAS
3.2 x 10
6.35
1.20
3.4
2.00 - 4.00
720
760
3.2 x 12
3.00 - 6.00
3.2 x 15
6.00 - 9.00
3.2 x 18
9.00 - 12.00
PAS
4.0 x 15
7.95
1.40
4.2
5.00 - 8.00
1150
1160
PAS
4.8 x 12
9.50
1.60
5.0
2.00 - 4.00
1600
1690
4.8 x 15
4.00 - 7.00
4.8 x 18
7.00 - 10.00
4.8 x 21
10.00 - 13.00
4.8 x 24
13.00 - 16.00
4.8 x 27
16.00 - 19.00
4.8 x 30
19.00 - 22.00
4.8 x 35
24.00 - 27.00
Body |
ALUMINIUM (5056) |
Mandrel |
Steel |
Head |
Dome |
Suitable for joining plastics, rubber, wood and laminates.
Tolerant of oversized holes, the “peel” can draw together and clamp poorly aligned components.
On your mobile, drag the table below to the left and right to see the information.
| Code | Diameter(d) (mm) |
Head (mm) |
Head (mm) |
Hole size
(mm) |
Grip Range (mm) |
Tensile strength (N) |
Shear strength (N) |
| PAS | 3.2 x 10 | 6.35 | 1.20 | 3.4 | 2.00 - 4.00 | 720 | 760 |
| 3.2 x 12 | 3.00 - 6.00 | ||||||
| 3.2 x 15 | 6.00 - 9.00 | ||||||
| 3.2 x 18 | 9.00 - 12.00 | ||||||
| PAS | 4.0 x 15 | 7.95 | 1.40 | 4.2 | 5.00 - 8.00 | 1150 | 1160 |
| PAS | 4.8 x 12 | 9.50 | 1.60 | 5.0 | 2.00 - 4.00 | 1600 | 1690 |
| 4.8 x 15 | 4.00 - 7.00 | ||||||
| 4.8 x 18 | 7.00 - 10.00 | ||||||
| 4.8 x 21 | 10.00 - 13.00 | ||||||
| 4.8 x 24 | 13.00 - 16.00 | ||||||
| 4.8 x 27 | 16.00 - 19.00 | ||||||
| 4.8 x 30 | 19.00 - 22.00 | ||||||
| 4.8 x 35 | 24.00 - 27.00 |
Body |
ALUMINIUM (5056) WHITE |
Mandrel |
Steel |
Head |
Dome |
On your mobile, drag the table below to the left and right to see the information.
| Code | Diameter(d) (mm) |
Head (mm) |
Head (mm) |
Hole size
(mm) |
Grip Range (mm) |
Tensile strength
(N) |
Shear strength (N) |
| PAS | 4.0 x 12 | 7.95 | 1.40 | 4.2 | 4.00 - 6.50 | 1150 | 1160 |
| 4.0 x 15 | 5.00 - 8.00 | ||||||
