Blind Rivets / Multigrip Blind Rivets
Body
ALUMINIUM
Mandrel
Steel
Head
Dome

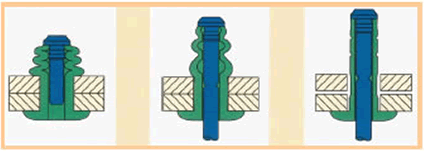

Has a wide grip range. Ideal for inconsistent holes.
On your mobile, drag the table below to the left and right to see the information.
Code
Diameter(d)
X
Length(L)
(mm)
Head
diameter
(Ave)
(dk)
(mm)
Head
thickness
(Max)
(K)
(mm)
Hole
size
(mm)
Grip Range
(mm)
Tensile strength
(N)
Shear strength
(N)
MG
3.2 x 08
6.00
1.40
3.3 - 3.4
1.00 - 5.50
670
540
3.2 x 12
4.50 - 9.00
MG
4.0 x 15
8.00
1.70
4.1 - 4.2
5.50 - 11.00
1030
850
MG
4.8 x 10
9.50
2.00
4.9 - 5.0
1.50 - 6.00
1430
1160
4.8 x 15
4.50 - 11.50
4.8 x 18
8.00 - 14.50
4.8 x 24
12.50 - 20.50
Body |
ALUMINIUM |
Mandrel |
Steel |
Head |
Dome |
Has a wide grip range. Ideal for inconsistent holes.
On your mobile, drag the table below to the left and right to see the information.
| Code | Diameter(d) (mm) |
Head (mm) |
Head (mm) |
Hole (mm) |
Grip Range (mm) |
Tensile strength (N) |
Shear strength (N) |
| MG | 3.2 x 08 | 6.00 | 1.40 | 3.3 - 3.4 | 1.00 - 5.50 | 670 | 540 |
| 3.2 x 12 | 4.50 - 9.00 | ||||||
| MG | 4.0 x 15 | 8.00 | 1.70 | 4.1 - 4.2 | 5.50 - 11.00 | 1030 | 850 |
| MG | 4.8 x 10 | 9.50 | 2.00 | 4.9 - 5.0 | 1.50 - 6.00 | 1430 | 1160 |
| 4.8 x 15 | 4.50 - 11.50 | ||||||
| 4.8 x 18 | 8.00 - 14.50 | ||||||
| 4.8 x 24 | 12.50 - 20.50 | ||||||
Body |
STEEL |
Mandrel |
Steel |
Head |
Dome |
On your mobile, drag the table below to the left and right to see the information.
| Code | Diameter(d) |
Head |
Head |
Hole
|
Grip Range (mm) |
Tensile strength (N) |
Shear strength (N) |
| MG | 4.8 x 14 | 10.10 | 1.60 | 4.9 - 5.0 | 1.50 - 9.50 | 2900 | 2700 |
Body |
STAINLESS STEEL (304) |
Mandrel |
Stainless Steel |
Head |
Dome |
On your mobile, drag the table below to the left and right to see the information.
| Code | Diameter(d) (mm) |
Head (mm) |
Head (mm) |
Hole (mm) |
Grip Range (mm) |
Tensile strength (N) |
Shear strength (N) |
| MG | 4.8 x 14 | 10.10 | 1.60 | 4.9 - 5.0 | 1.50 - 9.00 | 5000 | 4500 |
